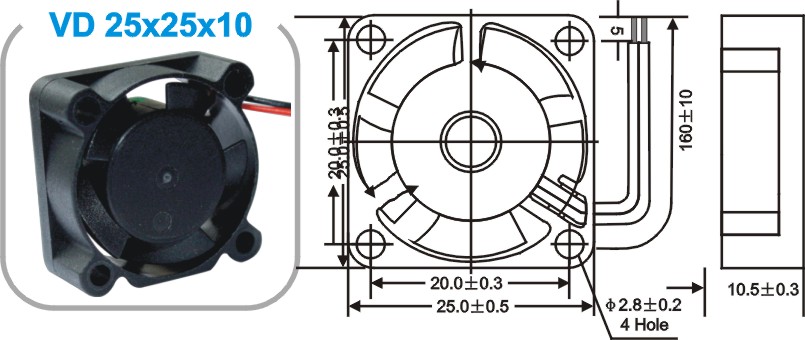

25x25x10mm      主要技术参数      Main Specification

Model InputVoltage Current Input Power Air Flow Wind Pressure Speed Noise Weight
(Model) (V) (A) (W) (CFM) (mm-H2o) (RPM) (dB) (g)
VD2510MS 12 0.10 1.20 1.10 2.07 7000 21.0 6
VD2510HS 12 0.13 1.56 1.77 4.21 12000 29.5 6

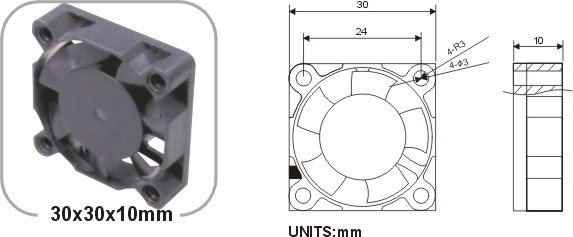

30x30x10mm      主要技术参数      Main Specification

Model

Input Voltage

Current Input Power Air Flow Wind Pressure Speed Noise Weight
(Model) (V) (A) (W) (CFM) (mm-H2o) (RPM) (dB) (g)
VD3010MS 12 0.12 0.55 3.78 2 9000 22 8.5
VD3010HS 12 0.14 0.7 4.5 2.5 11000 25 8.5

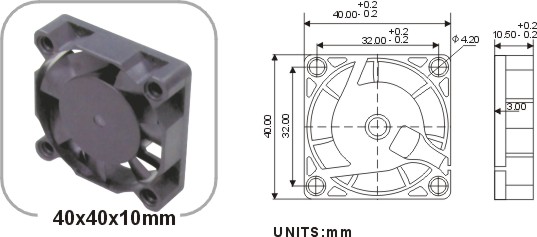

40x40x10mm      主要技术参数      Main Specification

Model

Input Voltage

Current Input Power Air Flow Wind Pressure Speed Noise Weight
(Model) (V) (A) (W) (CFM) (mm-H2o) (RPM) (dB) (g)
VD4010MS 12 0.05 0.6 4.9 2.8 5000 25 15
VD4010HS 12 0.05 0.72 5.6 3.3 6000 27.6 15

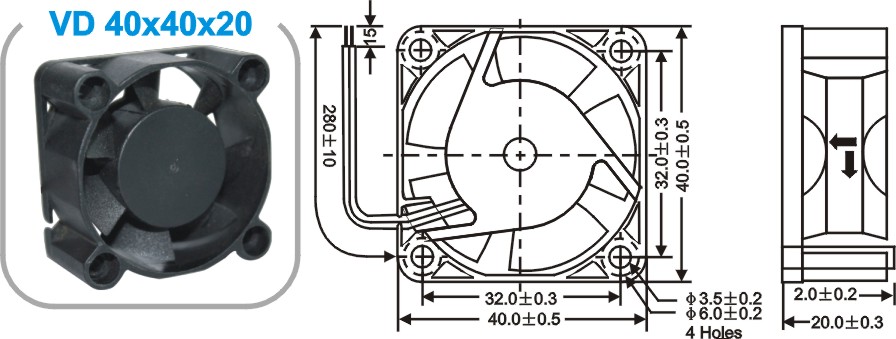

40x40x20mm      主要技术参数      Main Specification

Model Input Voltage Current Input Power Air Flow Wind Pressure Speed Noise Weight
(Model) (V) (A) (W) (CFM) (mm-H2o) (RPM) (dB) (g)
VD4020MS 12 1.10 1.20 7.15 5.60 6500 25.0 20
VD4020HS 12 0.12 1.44 8.46 7.66 7000 28.5 20

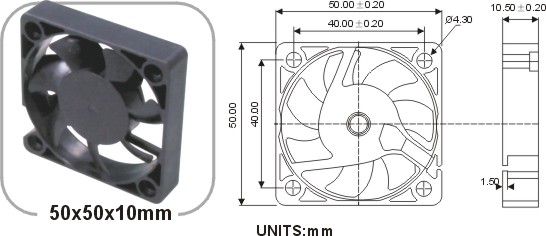

50x50x10mm      主要技术参数      Main Specification

Model

Input Voltage

Current Input Power Air Flow Wind Pressure Speed Noise Weight
(Model) (V) (A) (W) (CFM) (mm-H2o) (RPM) (dB) (g)
VD5010MS 12 0.09 1.08 10.44 4.27 4500 29 25
VD5010HS 12 0.12 1.44 12.36 6.16 5000 31 25

Return

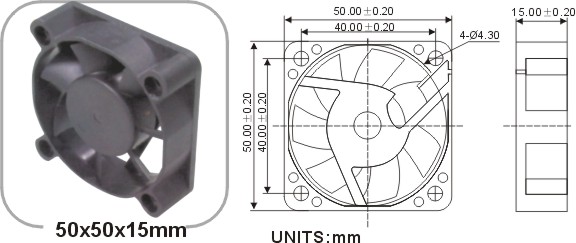

50x50x15mm      主要技术参数      Main Specification

Model

Input Voltage

Current Input Power Air Flow Wind Pressure Speed Noise Weight
(Model) (V) (A) (W) (CFM) (mm-H2o) (RPM) (dB) (g)
VD5015MS 12 0.10 1.2 12 4.5 4000 30 27.5
VD5015HS 12 0.15 1.8 15.79 4.99 5000 32 27.5

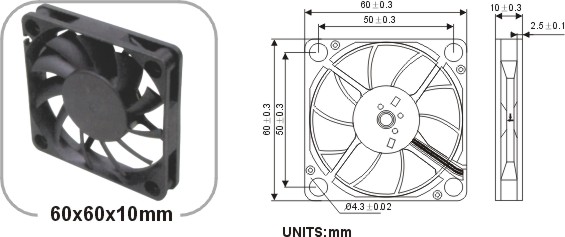

60x60x10mm      主要技术参数      Main Specification

Model

Input Voltage

Current Input Power Air Flow Wind Pressure Speed Noise Weight
(Model) (V) (A) (W) (CFM) (mm-H2o) (RPM) (dB) (g)
VD6010MS 12 0.15 1.8 14.5 2.9 4000 30 33
VD6010HS 12 0.22 2.64 15.46 3.82 4500 35 33

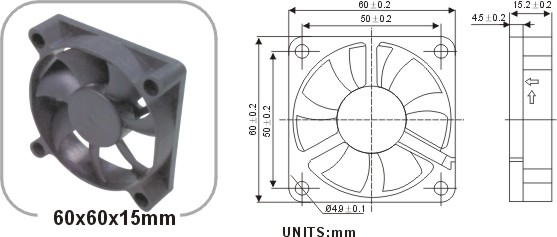

60x60x15mm      主要技术参数      Main Specification

Model

Input Voltage

Current Input Power Air Flow Wind Pressure Speed Noise Weight
(Model) (V) (A) (W) (CFM) (mm-H2o) (RPM) (dB) (g)
VD6015MS 12 0.12 1.44 14.73 2.13 3500 29 33
VD6015HS 12 0.16 1.92 18.69 3.24 4000 31 33

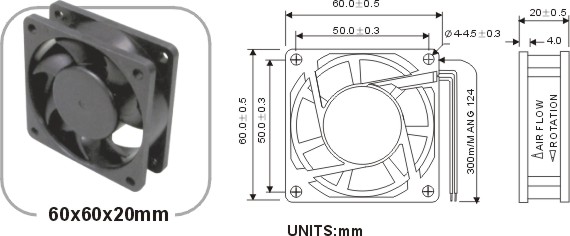

60x60x20mm      主要技术参数      Main Specification

Model

Input Voltage

Current Input Power Air Flow Wind Pressure Speed Noise Weight
(Model) (V) (A) (W) (CFM) (mm-H2o) (RPM) (dB) (g)
VD6020MS 12 0.12 1.44 13.8 4.41 4000 26 50
VD6020HS 12 0.16 1.92 16.31 5.32 4500 29 50

Return

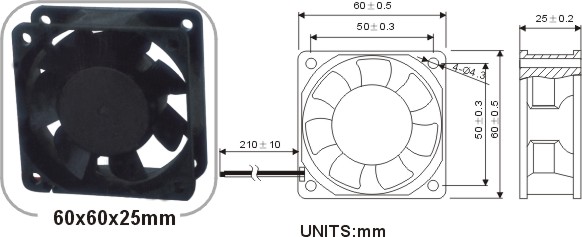

60x60x25mm      主要技术参数      Main Specification

Model

Input Voltage

Current Input Power Air Flow Wind Pressure Speed Noise Weight
(Model) (V) (A) (W) (CFM) (mm-H2o) (RPM) (dB) (g)
VD6025MS 12 0.16 1.92 18.3 5.6 3800 30 65
VD6025HS 12 0.20 2.4 23 6.5 4500 32 65

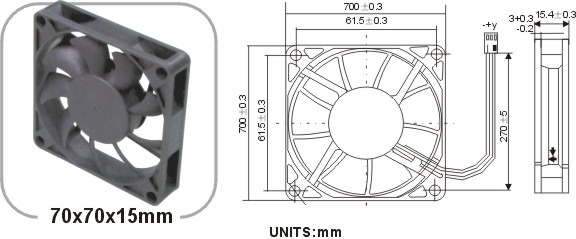

70x70x15mm      主要技术参数      Main Specification

Model

Input Voltage

Current Input Power Air Flow Wind Pressure Speed Noise Weight
(Model) (V) (A) (W) (CFM) (mm-H2o) (RPM) (dB) (g)
VD7015MS 12 0.10 1.2 18 3.81 2500 30 35
VD7015HS 12 0.16 1.92 22.5 5.07 3000 34 35

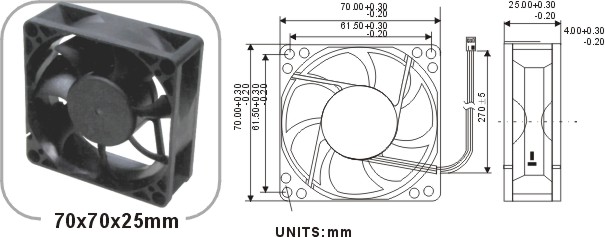

70x70x25mm      主要技术参数      Main Specification

Model

Input Voltage

Current Input Power Air Flow Wind Pressure Speed Noise Weight
(Model) (V) (A) (W) (CFM) (mm-H2o) (RPM) (dB) (g)
VD7025MS 12 0.17 2.04 26.99 4.92 3200 28.2 71
VD7025HS 12 0.25 3.0 31.21 5.55 3700 32 71

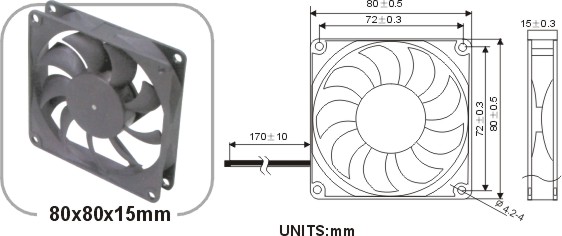

80x80x15mm      主要技术参数      Main Specification

Model

Input Voltage

Current Input Power Air Flow Wind Pressure Speed Noise Weight
(Model) (V) (A) (W) (CFM) (mm-H2o) (RPM) (dB) (g)
VD8015MS 12 0.15 1.8 22.5 2.8 2500 26 80
VD8015HS 12 0.17 2.04 30.6 3.6 3200 34 80

Return

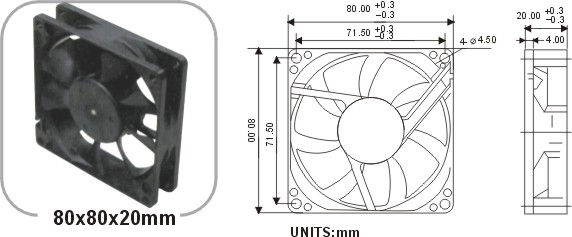

80x80x20mm      主要技术参数      Main Specification

Model

Input Voltage

Current Input Power Air Flow Wind Pressure Speed Noise Weight
(Model) (V) (A) (W) (CFM) (mm-H2o) (RPM) (dB) (g)
VD8020MS 12 0.12 1.44 24.56 4.29 2500 28.2 51
VD8020HS 12 0.18 2.16 29.35 5.55 3000 32 51

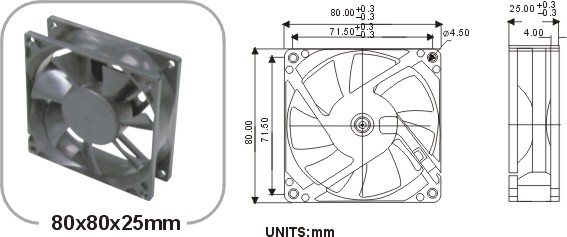

80x80x25mm      主要技术参数      Main Specification

Model

Input Voltage

Current Input Power Air Flow Wind Pressure Speed Noise Weight
(Model) (V) (A) (W) (CFM) (mm-H2o) (RPM) (dB) (g)
VD8025MS 12 0.14 1.68 33.5 3.27 2500 29 85
VD8025HS 12 0.17 2.04 38.92 4.7 3000 34 85

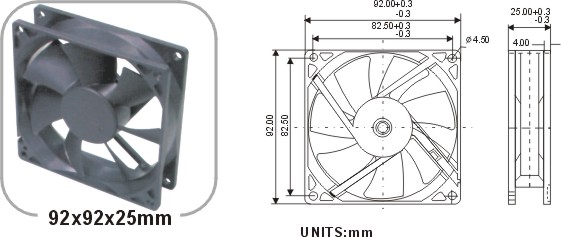

92x92x25mm      主要技术参数      Main Specification

Model

Input Voltage

Current Input Power Air Flow Wind Pressure Speed Noise Weight
(Model) (V) (A) (W) (CFM) (mm-H2o) (RPM) (dB) (g)
VD9225MS 12 0.20 2.4 48.71 3.6 2400 31 90
VD9225HS 12 0.28 3.36 56.35 4.8 2800 35 90

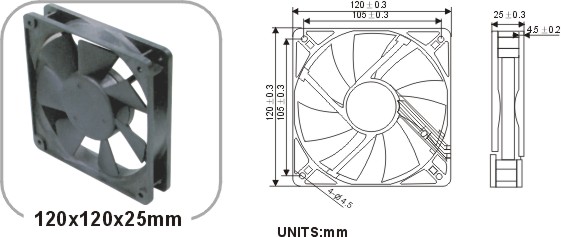

120x120x25mm      主要技术参数      Main Specification

Model

Input Voltage

Current Input Power Air Flow Wind Pressure Speed Noise Weight
(Model) (V) (A) (W) (CFM) (mm-H2o) (RPM) (dB) (g)
VD1225MS 12 0.20 2.4 70.16 3.10 2000 34 138
VD1225HS 12 0.28 3.36 83 3.67 2400 39 138

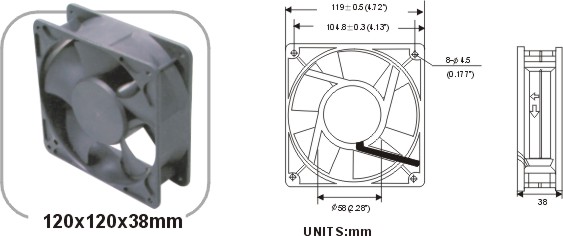

120x120x38mm      主要技术参数      Main Specification

Model

Input Voltage

Current Input Power Air Flow Wind Pressure Speed Noise Weight
(Model) (V) (A) (W) (CFM) (mm-H2o) (RPM) (dB) (g)
VD1238MS 12 0.44 5.28 81 5.36 2400 38 350
VD1238HS 12 0.58 6.96 105 7.53 3000 46 350

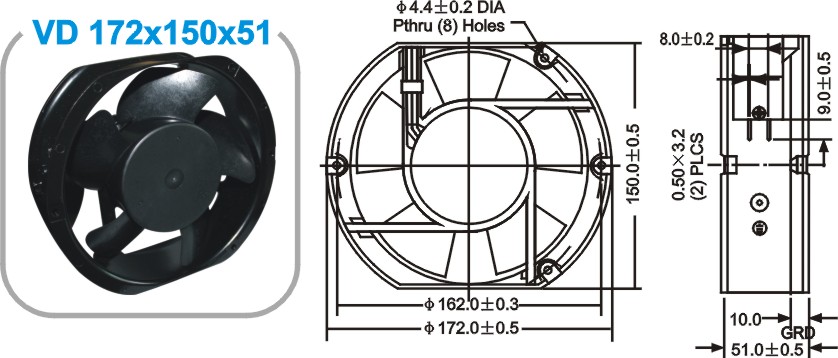

172x150x51mm      主要技术参数      Main Specification

Model InputVoltage Current Input Power Air Flow Wind Pressure Speed Noise Weight
(Model) (V) (A) (W) (CFM) (mm-H2o) (RPM) (dB) (g)
VD17251MS 12 1.00 12.00 201.50 14.40 2900 51.8 742
VD17251HS 12 1.60 19.20 226.50 19.40 3300 55.8 742

Return

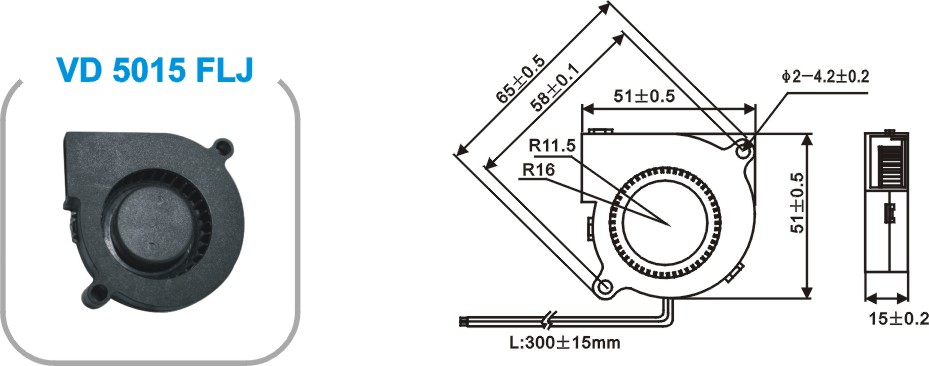

主要技术参数 Main Specification
MODELS
Rated Voltage
Rated Current
Rated Input Power
Speed
Max.Air Flow
Max.Air Pressure
Noise
Weight
(models)
(VDC)
(Amp)
(W)
(r/min)
(CFM)

(mm-H2o)

(dB-A)
(G)
VD 5015FLJ 12L
12
0.09
1.08
3500
3.18
11.22
27.0
26
VD 5015FLJ 12M
12
0.16
1.92
4500
4.00
11.51
32.4
26
VD 5015FLJ 12H
12
0.23
2.76
5500
4.85
11.78
38.5
26
VD 5015FLJ 24L
24
0.06
1.44
3500
3.18
11.21
27.0
26
VD 5015FLJ 24M
24
0.10
2.40
4500
4.00
11.51
32.4
26
VD 5015FLJ 24H
24
0.16
3.84
5500
4.85
11.78
38.5
26

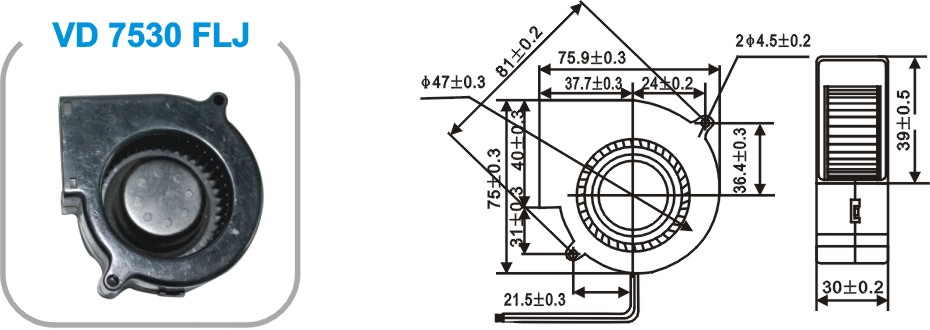

主要技术参数 Main Specification
MODELS
Rated Voltage
Rated Current
Rated Input Power
Speed
Max.Air Flow
Max.Air Pressure
Noise
Weight
(models)
(VDC)
(Amp)
(W)
(r/min)
(CFM)

(mm-H2o)

(dB-A)
(G)
VD 7530FLJ 12L
12
0.17
2.04
2500
9.80
9.88
39.4
76
VD 7530FLJ 12M
12
0.24
2.88
3000
11.56
10.30
39.3
76
VD 7530FLJ 12H
12
0.45
5.40
3500
13.20
11.00
43.6
76
VD 7530FLJ 24L
24
0.11
2.64
2500
9.8
9.88
34.4
76
VD 7530FLJ 24M
24
0.18
4.32
3000
11.56
10.30
39.3
76
VD 7530FLJ 24H
24
0.22
5.28
3500
13.20
11.00
43.6
76

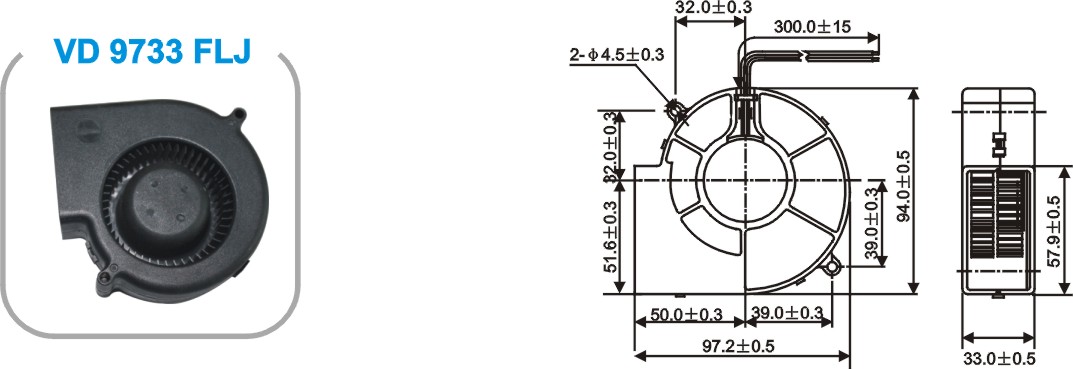

主要技术参数 Main Specification
MODELS
Rated Voltage
Rated Current
Rated Input Power
Speed
Max.Air Flow
Max.Air Pressure
Noise
Weight
(models)
(VDC)
(Amp)
(W)
(r/min)
(CFM)

(mm-H2o)

(dB-A)
(G)
VD 9733FLJ 12L
12
0.20
2.40
2400
17.88
9.88
42.1
168
VD 9733FLJ 12M
12
0.52
6.24
2800
21.40
17.60
45.8
168
VD 9733FLJ 12H
12
0.65
7.80
3300
26.30
21.70
48.6
168
VD 9733FLJ 24L
24
0.18
4.32
2400
17.88
13.44
42.1
168
VD 9733FLJ 24M
24
0.33
7.92
2800
21.40
17.60
45.8
168
VD 9733FLJ 24H
24
0.56
13.44
3300
26.30
21.70
48.6
168

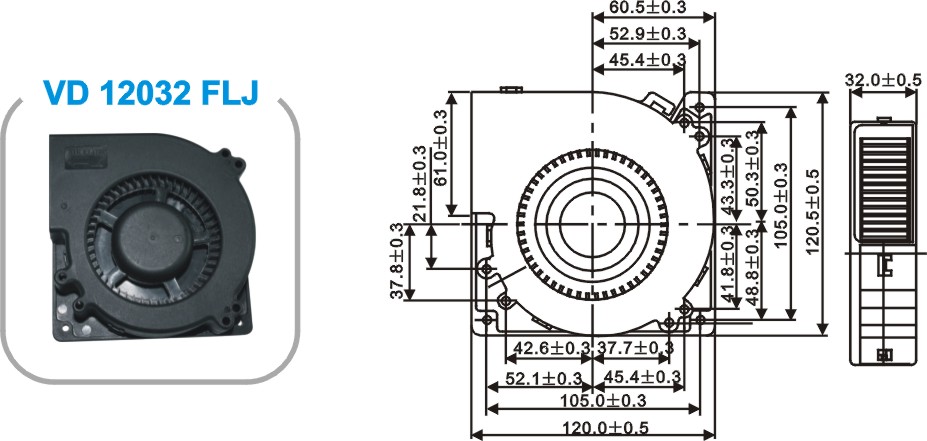

主要技术参数 Main Specification
MODELS
Rated Voltage
Rated Current
Rated Input Power
Speed
Max.Air Flow
Max.Air Pressure
Noise
Weight
(models)
(VDC)
(Amp)
(W)
(r/min)
(CFM)

(mm-H2o)

(dB-A)
(G)
VD 12032FLJ 12L
12
0.35
4.20
2000
11.56
7.11
32.0
252
VD 12032FLJ 12M
12
0.75
9.00
2400
19.70
14.30
38.0
252
VD 12032FLJ 12H
12
0.95
11.40
2800
27.84
22.70
44.0
252
VD 12032FLJ 24L
24
0.20
4.80
2000
11.56
7.11
32.0
252
VD 12032FLJ 24M
24
0.32
7.68
2400
19.70
14.30
38.0
252
VD 12032FLJ 24H
24
0.49
11.76
2800
27.84
22.70
44.0
252
